ferecreditcard.blogg.se - Rockwell rslinx classic

#Rockwell rslinx classic drivers#
#Rockwell rslinx classic driver#
#Rockwell rslinx classic software#
#Rockwell rslinx classic code#

“Port 44818 is needed only when a user wants to utilize unsolicited messages. The advisories highlight how the buffer overflow flaw could also be avoided by disabling the target port. Rockwell Automation, as well as ICS-CERT have released security advisories emphasizing the severity of the flaw.

Upon notice, Rockwell Automation has released patches for the affected versions: v3.60, v3.70, v3.80, v3.81, v3.90, v4.00.01, v4.10.

The vulnerability was rated with a CVSS v3 score of 10.0 which indicates how ciritical it was.

Affected products include RSLinx Classic v4.10.00 and older versions.

#Rockwell rslinx classic code#

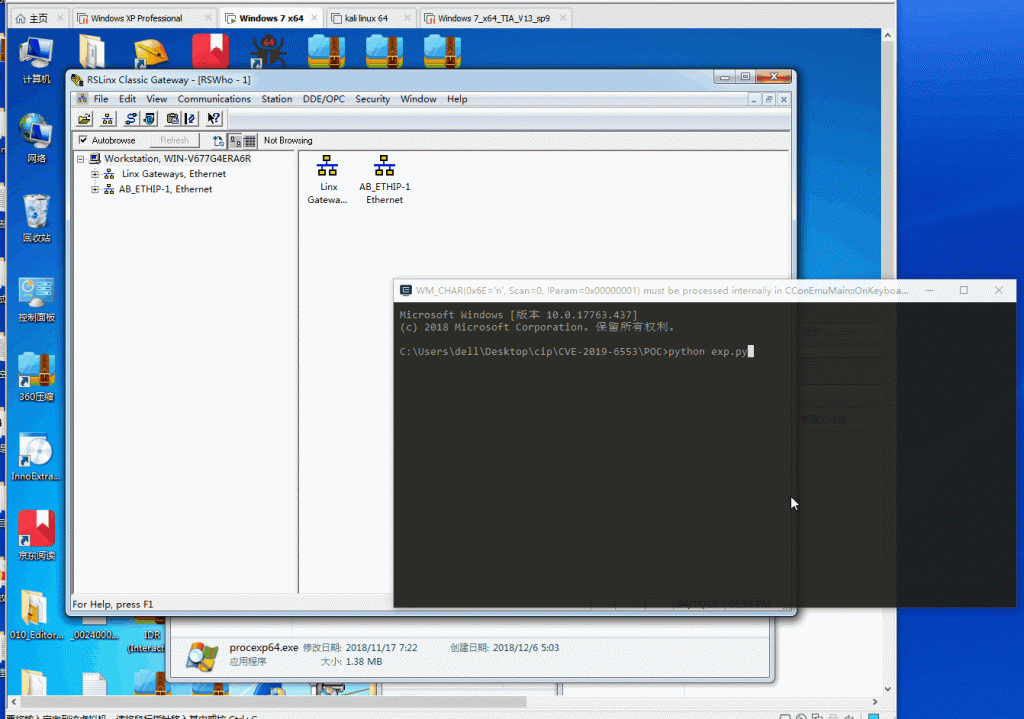

The vulnerability designated as CVE-2019-6553 could have led to denial-of-service attacks and subsequently allowed remote code execution (RCE).

According to Tenable, the buffer overflow vulnerability existed in an Engine.dll file where an attacker could specify malicious instances in TCP port 44818.

This could have allowed a remote attacker to execute arbitrary code on the automation device. Researchers at Tenable had earlier found that RSLinx Classic contained a stack buffer overflow flaw due to a DLL file used by the software.

#Rockwell rslinx classic software#

The software helps configure and communicate with industrial automation devices and networks. Rockwell Automation, one of the top industrial automation companies in the world, patched a major security vulnerability in its popular software package RSLinx Classic.

A buffer overflow vulnerability existing in one of the software could have led to denial-of-service attacks as well as allowed remote code execution (RCE).

RSLinx Classic is a communication software package meant for managing industrial automation applications and devices.

Highlight the driver, and you should see all devices on the Data Highway Plus network. Also be sure the gateway machine is on the same network as your PC.Īfter you press “Apply” and “OK”, go to the RSWho screen of your client.

#Rockwell rslinx classic drivers#

At this point, if you are not able to see any drivers on the gateway machine, be sure to double check the firewall on both PCs.

#Rockwell rslinx classic driver#

Click the driver you wish to connect to, and press OK. You will see the drivers that are available on the Gateway PC. If your gateway machine is not automatically discovered, enter the IP address of the gateway machine, and hit “Browse”. Click “Communication | Configure Drivers”, then choose “Remote Devices via RSLinx Gateway. The client does not need an activation installed to access the gateway. Now that the gateway is set up, you are ready to configure the driver on the client. Since RSLinx sometimes runs as a service, I always reboot the computer if possible. At this point, under “Communications” choose to configure the gateway.īe sure to check “Enable RSLinx Gateway”, then choose “Apply” and “OK”.įinally, restart RSLinx. Also, set up any drivers you need for your communication cards. The Title Bar of RSLinx should reflect this. On the Gateway Computer, be sure you have an RSLinx Gateway activation installed. You also improve your flexibility to access the Data Highway Plus network from potentially anywhere in the plant. Since the cost of a 1784-KTx module (or any other network module) is so high, you will save money in the long run.
